MT decoiler machine for metal coil steel sheet

MT decoiler machine for metal coil steel sheet

MT decoiler machine for metal coil steel sheet
MT decoiler machine for metal coil steel sheetMT decoiler machine for metal coil steel sheetMT decoiler machine for metal coil steel sheetMT decoiler machine for metal coil steel sheetMT decoiler machine for metal coil steel sheet
CategoriesDecoiler/Unwinder machine
AlbumView larger image
BrandHongEr
ModelMT
Functiondecoiling metal sheet
Featurefor coil handling work
Nameuncoiler machine
Compactstraightener and servo feeder
Usagemetal stamping line
attributecustomized with coil car, pressing arm
Update Time2018-12-16
Detail Information

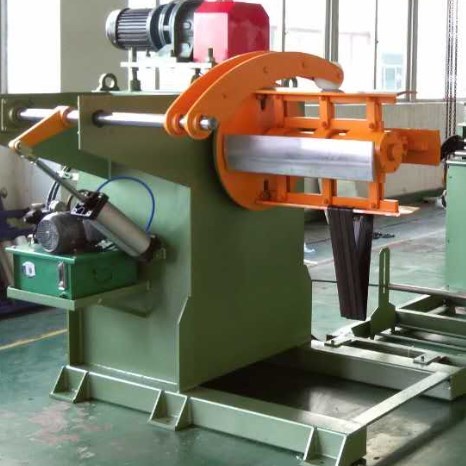

MT decoiler machine for metal coil steel sheet

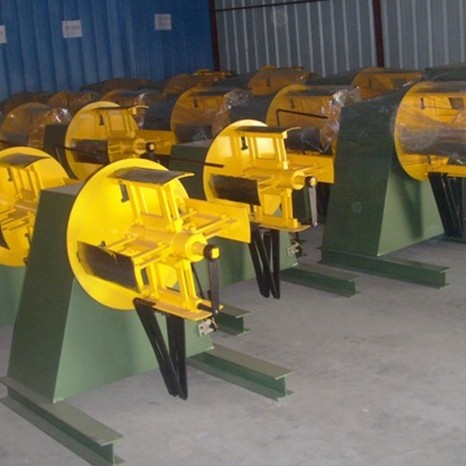

Photo Show
Description

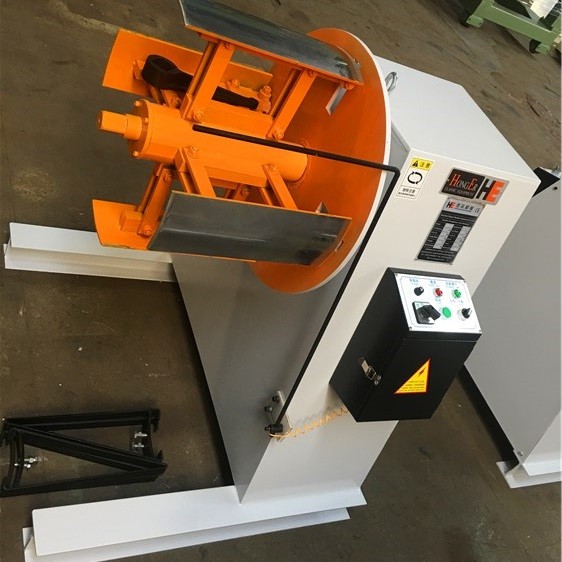

MT decoiler machine for sheet metal strip

1, Customized pressing arm when thickness up to 2mm; It is with pneumatic power.

2, "A" Type coiler keeper which can fix the coil sheet.

3, Manual expansion way. When the material weight above 3 Tons, we suggest to use hydraulic expansion. And inverter will be assembled to make speed stable and protect the motor.

Tips: Coil car is optional. Often we suggest to choose coil car when sheet metal steel coil weight above 5 tons.

specification
Model
MT-200
MT-300
MT-400
MT-500
MT-600
Coil width(mm)
200
300
400
500
600
Coil thickness(mm)
0.35-1.6
Coil inner diameter
450-530mm
Coil out diameter
1200mm
Coil weight(kg)
500
800
1000
1500
2000
Motor(HP)
1
1
1.5
1.5
2
Mandrel expansion
Manual or Hydraulic
Application
MT decoiler machine is decoiling for sheet metal coil in a coil handling line. It suits for metal sheet like aluminum, carbon steel, stainless steel, galvanized steel, copper, etc. It often compacts with straightener and automatic feeder machine for press.

MT

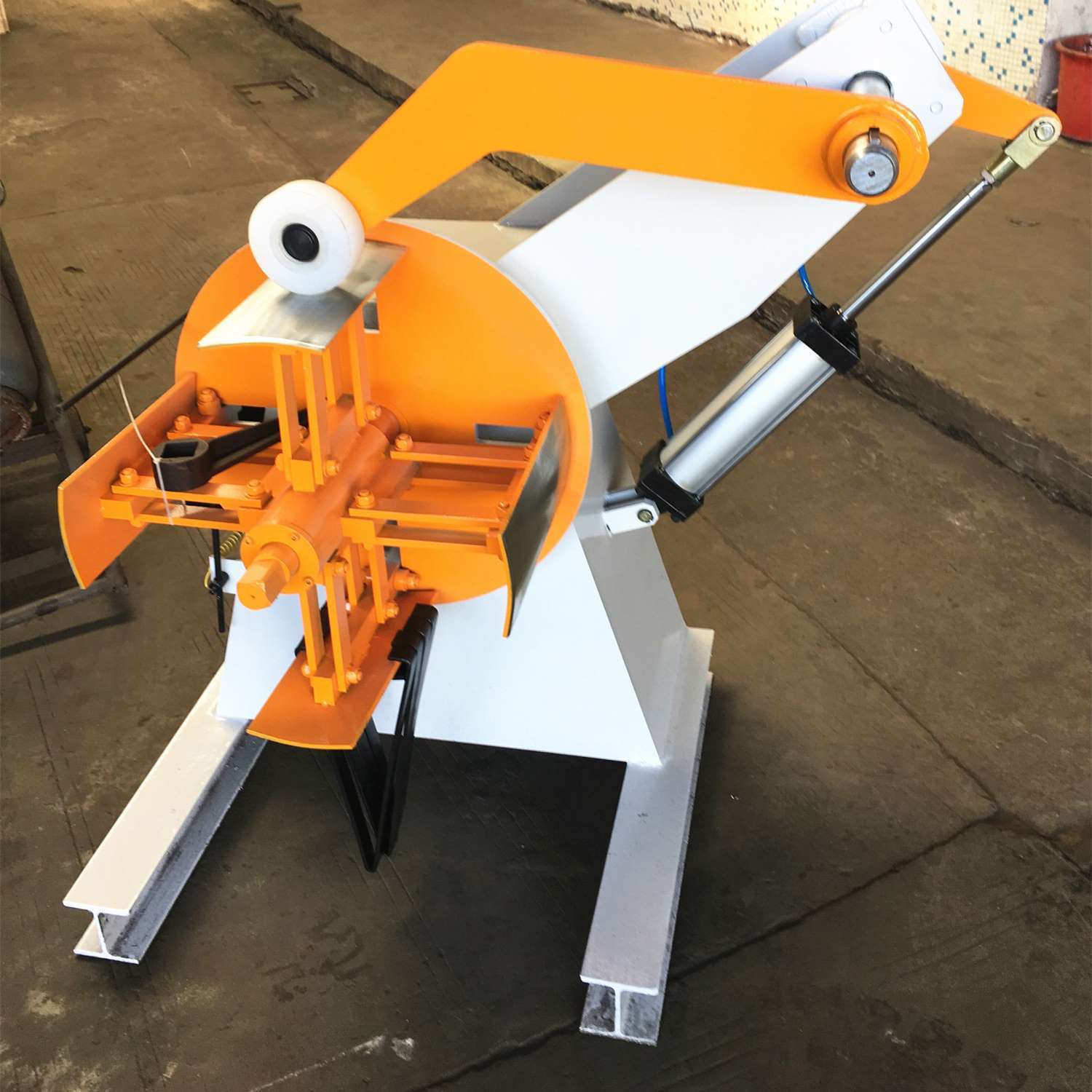

MT decoiler with pressing arm
+straightener machine
+ servo feeder
exported to Indonesia
Compact SEYI press


Metal stamping solution suggestion:
Decoiler & Straightener + NC servo feeder + Press

MT

MT-1300
for 1300mm width sheet metal coil
with pressing arm
exported to UK
for metal stamping


Metal stamping solution suggestion:
Decoiler + NC servo feeder + Press
