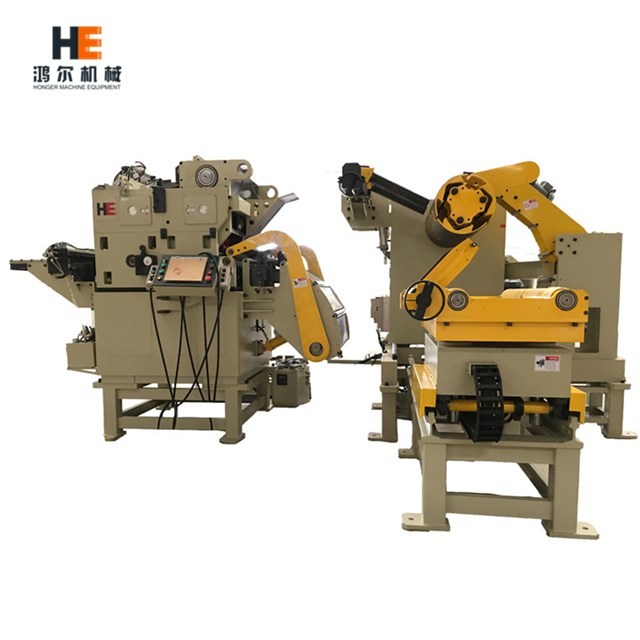

GLK4-H High Strength Servo Feeder for Metal Auto Parts Pressing

GLK4-H High Strength Servo Feeder for Metal Auto Parts Pressing

GLK4-H High Strength Servo Feeder for Metal Auto Parts Pressing
GLK4-H High Strength Servo Feeder for Metal Auto Parts PressingGLK4-H High Strength Servo Feeder for Metal Auto Parts PressingGLK4-H High Strength Servo Feeder for Metal Auto Parts PressingGLK4-H High Strength Servo Feeder for Metal Auto Parts PressingGLK4-H High Strength Servo Feeder for Metal Auto Parts Pressing
Categories3 in 1 Decoiler Straightener Feeder
AlbumView larger image
BrandHongEr
ModelGLK4-H
Functionservo feeding for high strength coil
Featurethick metal coil handling
Name3 in 1 decoiler straightener feeder
Compactlarge tonnage press machine
Usageautomotive stamping
attributeuncoiling straightening with auto feeder system
Update Time2018-11-22
Detail Information
GLK4-H High Strength Servo Feeder for Metal Auto Parts Pressing
Photo show
Description
Decoiler Section

1, Pressing arm to press coil;

2, PU wheel on the pressing arm, so as to protect the surface of coil;

3, "A" frame coil keeper to locate coil;

4, Decoiler mandrel with hydraulic expansion and delta inverter;

5, Supporting arm with pneumatic to lift coil;

Straightener & Feeder Section

1, Worm & gear adjustment to adjust the gap between straightener rollers;

2, Feeder inlet can be customized with coil inlet arm;

3, Outlet support bracket can be customized with the length;

4, Display screen is from Weinview Taiwan;

5, Oil car is optional which can protect the moulds;

specification
Model
GLK4-400
GLK4-500
GLK4-600
GLK4-800
GLK4-1000
GLK4-1300
Material
Hot Rolled Steel, Cold Rolled Steel, Galvanized Steel, Painted Steel, Stainless Steel, Copper, Aluminum etc.
Coil width(mm)
70-400
70-500
70-600
70-800
70-1000
70-1300
Coil thickness
0.6-6.0mm
Coil weight
5000kg
5000kg
5000kg
7000kg
7000kg
10000kg
Coil I.D.(mm)
480-520
Coil O.D.(mm)
1200
Max. speed
16-24 m/min
Feeding accuracy
+/- 0.15 mm
Straightener rollers
4 rollers on top
3 rollers on bottom
Power
380V 60HZ
Expansion
Hydraulic
Pressing arm
Pneumatic Type
Servo motor
AC5.5
AC5.5
AC7.5
AC7.5
AC11
AC11
Uncoiler motor
AC2.2
AC2.2
AC2.2
AC3.7
AC3.7
AC7.5
Application
GLK2 uncoiler straightener feeder machine which is widely used in metal stamping feeding line for metal parts stamping. It is popular in electric appliance, construction, furniture industry.
GLK4

GLK4-600
3 in 1 servo feeder machine
compacted with 250 ton AIDA press
working for automotive stamping
exported to UK


Solution Sugeestion:
3 in 1 decoiler straightener feeder + press
GLK4

GLK4-1000
uncoiler straightener feeder machine
compacted with SEYI press
for auto parts metal stamping
exported to Vietnam


Solution Sugeestion:
3 in 1 decoiler straightener feeder + press
